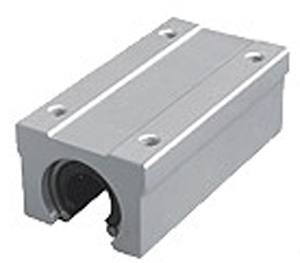

20mm Linear Bearing Twin Block Slide unit Open
	Part Number: Kit8301 Our Low Price: $39.95 Shipping Weight: 1.15 pounds
	Quantity:

Double Size Aluminium Pillow Block Open Slide unit with 2 pre-installed 20mm Ball bushing Can be used with 20mm Shafts

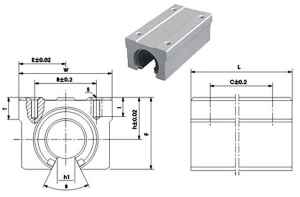

SHAFT DIAMETER	Main Dimensions (mm)								MOUNTING DIMENSIONS				WEIGHT(kg)
	h	e	W	L	F	T	h1	Ø	B	C	S	I
20	23	24	48	96	39	11	10	80	35	70	M6	12	.51
