25mm CNC Bushing Linear Bearing Block

Bearings

Ball Bearing

25mm CNC Bushing Linear Bearing Block

Part Number: Kit7270
Our Low Price: $39.95
Shipping Weight: 1.3 pounds

Quantity:

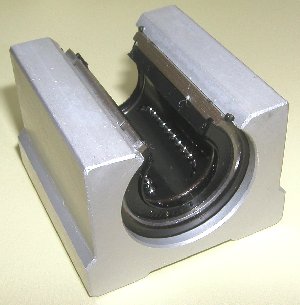

Aluminium Pillow Block
Slide unit with pre-installed 25mm ID Bearing
To be used with 25 mm Shafts

Unit
Designation

Main dimension

Slide bush

Weight

h

E

W

L

F

h1

Angle

B

C

S

L

Type

Basic load rating

Dyn.
CN

Stat.
CON

SC25UUOP

27

30

60

65

47

11.5

50⁰

40

40

M6

12

LME25UU-OP

980

1570

450
