Conveyor Roller unground Flanged Bearing 12x47.6


Conveyor Roller unground Flanged Bearing 12x47.6
Conveyor Roller unground Flanged Bearing 12x47.6 Part Number: Kit7934
Our Low Price: $2.45
Shipping Weight: 0.2 pounds


Quantity:

47.6mm Conveyor Bearings for Rollers

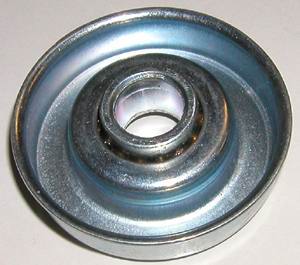

Mechanical Drawing Conveyor Bearings for Rollers Conveyor Bearings for Rollers :: Side outside the roller

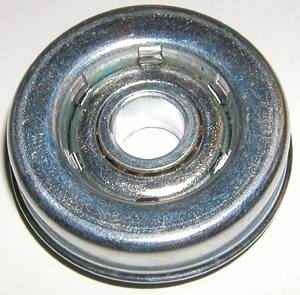

Conveyor Bearings for Rollers :: Side inside the roller
D1 D d H B Loading(lb)
50.7mm 47.6mm 12mm 18mm 13mm 580

One slow speed unground flanged ball bearings for use with the conveyor rollers (pipes/cylinders), inner diameter bore=12mm, outer diameter=47.6mm, the mechanical drawing and the table above shows all the dimensions, the table shows also the load capacity, good luck building your conveyor system.
  • Item: unground flanged ball bearings
  • Inner diameter: 12mm
  • Fitting diameter (outer surface): 47.6mm
  • Flange Diameter (outer edge): 50.7mm
